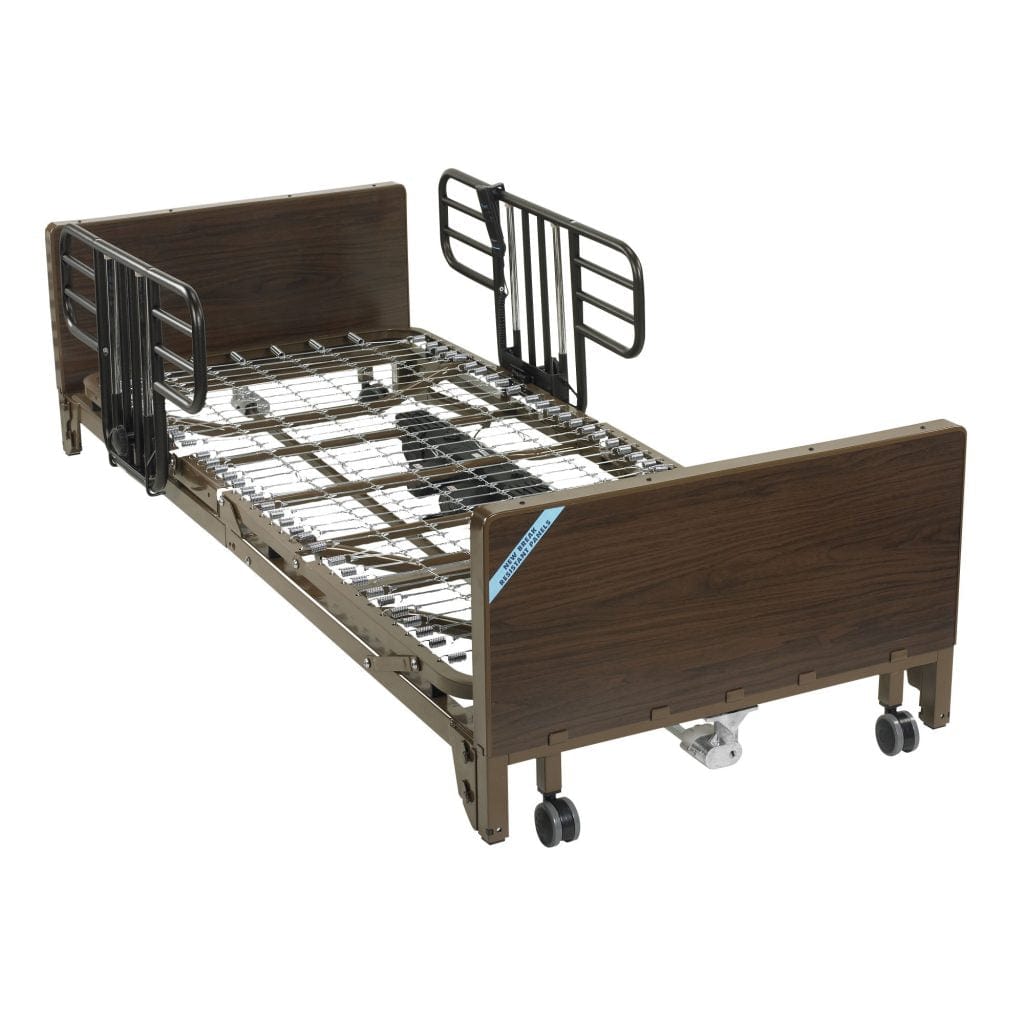

Drive Medical Delta Ultra-Light Hi-Lo Hospital Bed
The Drive Medical Delta Ultra-Light Hi-Lo Hospital Bed combines functionality, safety, and aesthetics to provide an excellent solution for home care settings. With its self-contained motor and user-friendly design, this bed offers both comfort for patients and convenience for caregivers.
Key Features:
- Interchangeable Components: Headboards and footboards are compatible with most other bed ends, both old and new, from Drive and other manufacturers.

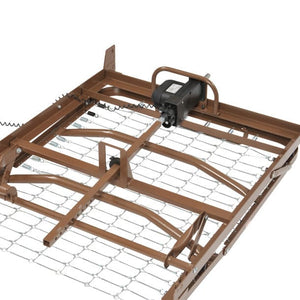

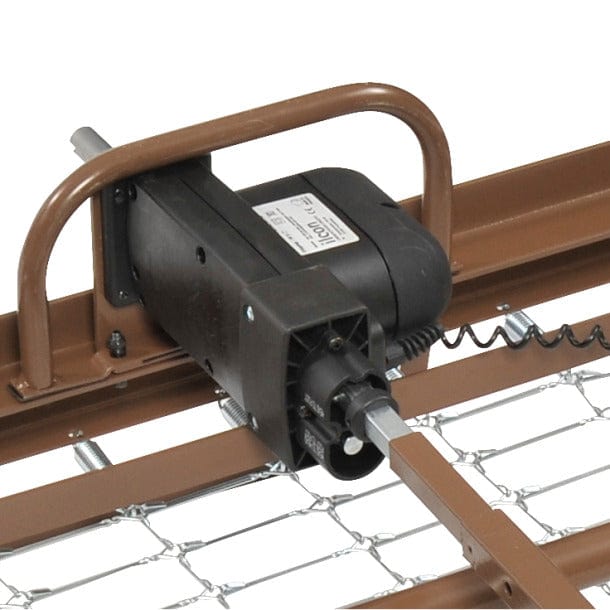

- Quiet Operation: Unique, self-contained motor reduces weight and noise.
- Flexible Motor Installation: Height-adjustable motor comes pre-installed on the foot section and can be removed/installed while the user is in the bed.
- Battery Backup: Can lower the head and foot sections up to nine times during a power failure.
- Improved Hand Pendant: Features large, easy-to-use controls.
- Safety-Focused Design: Color-coded springs and labels ensure accurate installation of side rails for patient safety.
- Adjustable Height: Frame adjusts from 9.5" to 23.5" deck height.

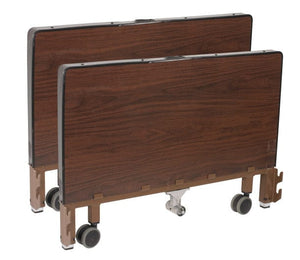

- Home-Friendly Aesthetics: Headboard is taller than footboard to better fit home decor.
- Durable Construction: Wood grain panels are break and scratch-resistant.

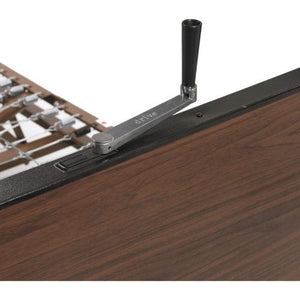

- Accessible Controls: Top-mounted Hi/Lo crank for easy accessibility.
- Corrosion-Resistant Deck: Zinc-coated spring deck resists corrosion and is easily cleaned.
- Superior Strength: Channel frame construction provides enhanced strength with reduced weight.
- Easy Positioning: Caster easily moves the frame from standard to low bed position.
- Weight Capacity: 450 lbs
Specifications
Specifications
- Weight Capacity: 450 lbs
- Primary Material: Steel
- Weight: 167 lbs
- Battery: (1) 9V
- Bed Frame Height Range: 9.5" (without Casters) – 23.5" (with Casters)
- Casters: 3"
- Foot Section Height Range: 23" – 34.5"
- Footboard Height Range: 24.5" – 35.5"
- Ground Clearance: 0.5"-12" (3.5"-15" with Casters)
- Head Section Height Range: 36.25" – 47.75"
- Headboard Height Range: 27" – 38"
- Overall Length: 88.625"
- Overall Width: 34.75"
- Head/Foot Motor: 15037MN
- Bed Frame Height Motor: 15033MHLN-MGBA
Mattress Options
Mattress Options
MedMattress Care Mattress
A single layer channel cut foam mattress ideal for low-risk patients, providing support and pressure redistribution.
Key Features:- Healthcare grade nylon cover with ultra-soft, four-way stretch fabric
- 360° zippered mattress cover for easy inspection and replacement
- Anti-contamination fluid protection flap
- Built-in fire barrier
- CertiPUR-US foam core with five unique pressure zones
- Weight Capacity: 350 lbs
- Warranty: One (1) Year
MedMattress Plus Care Mattress
A dual-layered, multi-density foam mattress offering exceptional support and localized gel memory foam, suitable for low to moderate risk patients.
Key Features:- Healthcare grade nylon cover with ultra-soft, four-way stretch fabric
- Firm edge support with two zones of ultra-firm foam
- CertiPUR-US foam core with soft comfort top layer and high-density supportive base layer
- Heel section with ultra-soft memory foam
- Weight Capacity: 350 lbs
- Warranty: One (1) Year
MedMattress Pro Care Mattress
A dual-layered, multi-density foam mattress ensuring patient comfort, pressure redistribution, and postural support, ideal for moderate risk patients.
Key Features:- Healthcare grade nylon cover with ultra-soft, four-way stretch fabric
- CertiPUR-US foam core with Cool-Gel Memory Foam Top Layer and High-Density Supportive Foam Base Layer
- Firm edge support with two zones of ultra-firm foam
- Sloped heel section with memory foam
- Weight Capacity: 350 lbs
- Warranty: One (1) Year
Protekt Aire 6000 Low Air Loss & Alternating Pressure Mattress
- Preferred choice for treating stage I-IV pressure ulcers
- Combines low air loss and alternating pressure therapies
- Unique cell-on-cell design with one-way valve for power failure protection
- 18 laser holes for patient cooling and dryness
- Weight Capacity: 450 lbs
- Warranty: 2 Years
Side Rail Options
Side Rail Options
Half Rails (Pair)
Specific details not provided in the original description.
Full Rails (Pair)
Specific details not provided in the original description.
Warranty & Returns
Warranty & Returns
Drive Medical offers a comprehensive warranty on the Delta Ultra-Light Hi-Lo Hospital Bed:
- Welds: Limited Lifetime Warranty
- Frame: 5 Year Limited Warranty
- Other Parts/Components: 1 Year Limited Warranty
For specific return policy information and detailed warranty terms, please contact your authorized Drive Medical dealer or the manufacturer directly.
